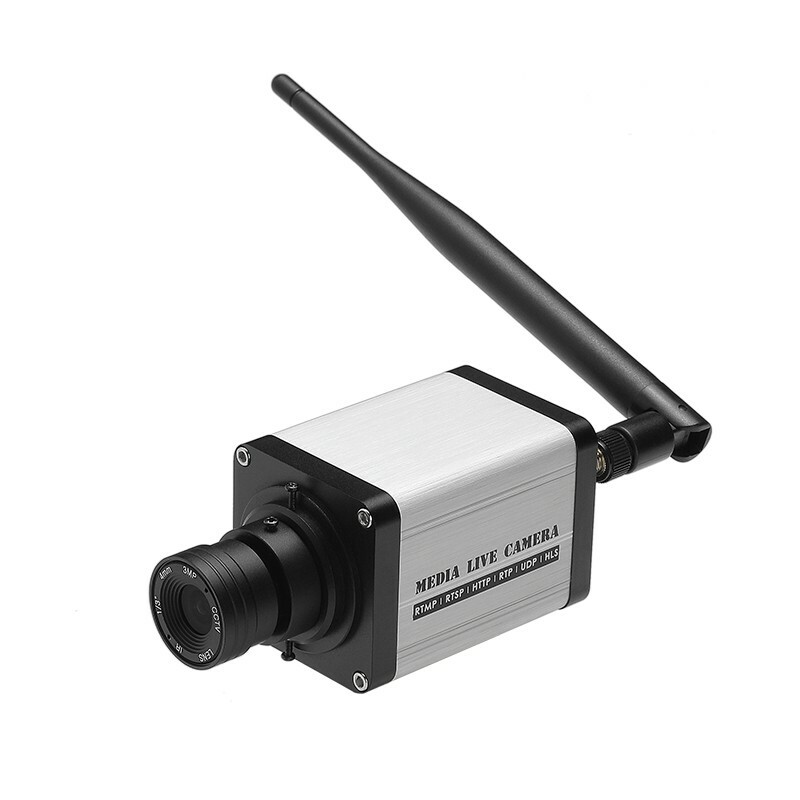

H.265/H.264 Live Stream Camera Broadcast RTSP/RTP/RTMP/SRT/HTTP/UDP/ONVIF/HLS
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Brand | CELTECH |
| Type | HD Digital |
| Model | CEL-V1W |
Live Streaming CameraLive Streaming Camera CEL-V1W is a professional audio/video encoding product. This product supports HD audio/video collecting function, 3.5MM independent audio collecting function, talkback function, TF card memory and RS485 etc. Dual streams output: H.264 / H.265 format; Audio: MP3, AAC,G.711 format. Configuration could be freely adjusted according to the need. Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS/ SRT/ SL Superlink (P-P) protocols etc.The encoded streams are compatible with main streaming platform like Vmix, OBS, YouTube, Wowza... …Features：◆Embedded hardware coding◆2M 1/3”CMOS Sensor, very low illumination, adjustable shutter and optional lens.◆Support the main, secondary and other multi protocol and multi stream function, main stream and secondary stream can be transmitted with different protocol.◆Support private protocol for low delay connection(SDK).◆Support QR code, support IOS/Andriod APP remote management .◆Support H265 MAIN PROFILE H.264 BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE.◆Support multiple devices display on a computer at the same time◆Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio)◆Rate Control CBR / VBR 16kBIT/S ~ 12MBIT/S◆Network interface apply 1000M full duplex mode.◆1 IP signal output, 1 3.5 audio output, TF card storage and RS485 control. Support audio gain ,be able to turn volume individually.◆Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS/SRT/ unicast and multicast protocol (RTMP support adding users and changing passwords), support DHCP & ONVIF protocol, support blue-ray HD.◆Compatible with stream media servers like Wowza,FMS,RED5,etc.Work with stream media servers to realize video live show.◆Support customizing output stream resolution.◆Transmission: TCP, UDP, 100M/1000M (RJ45 Ethernet port duplex)◆Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)◆Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance.◆Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering.◆Support stereo input & output. Support voice intercom and left/right vocal tract.◆Support one-key recovery of the default configuration and one-key recording.Specifications：WEB GUIAbout the lens:The FHD IP camera is based on demountable lens solution, there are some alternatives for customers, they are 4mm/ 6mm/ 8mm (fixed) and zoom lens (2.8-12mm), the performances as pictures on left side for reference.We will send 4mm lens version by default, please mention if don’t need 4mm lens but another one.
